Generator and Tables for Veterinary Clinics

Investing in a Table / Generator System for your Small Animal Clinic or need a Portable System? There are several options depending on many factors: power requirements, kV needs, product weight, etc.

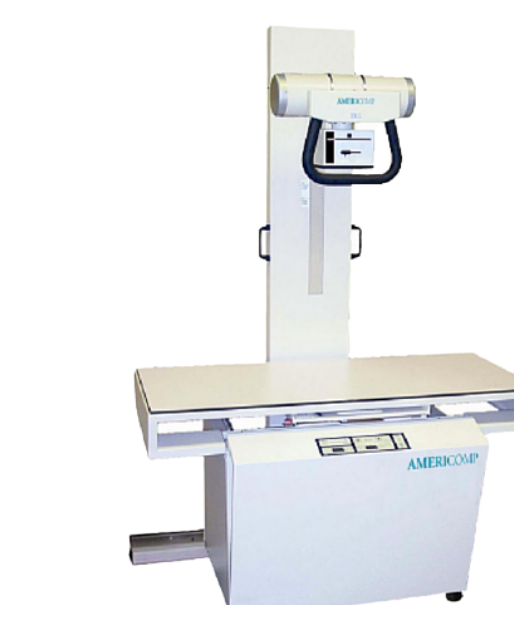

Americomp AV30HF

Veterinary X-ray System Contact us for pricing.
Includes shipping and installation.

  • High-Frequency Generator
  • 20 kHz High-Frequency technology
  • 30 kW rating
  • kVp range: 40 – 125
  • mA range : 50-300, mAs range: 0.5 to 400
  • Digital mA, kVp and mAs readout
  • Digital diagnostic readout
  • Built-in tube protection circuit
  • UL Classified
  • Operation from 230-240 VAC, single phase electrical
  • Table / Tubestand
  • Fixed top table: 53 in. x 24 in.
  • Welded base construction
  • Variable vertical tube travel
  • DR holder 06194 replaces grid cabinet, grid, and tray
  • Angulation indicator and operator handgrips
  • Footswitch with 20 ft. cord
  • X-Ray Tube A120
  • 1.0 – 2.0 mm F.S., 140,000 H.U. with 90° horns
  • Cables A0012
  • 12 ft. high-voltage cables with federal terminations
  • Collimator A8048-2
  • Manual collimator with light field
  • Field light “on” time – selectable 30, 60, 90 or 120 seconds
  • Easy-to-operate with gloves on

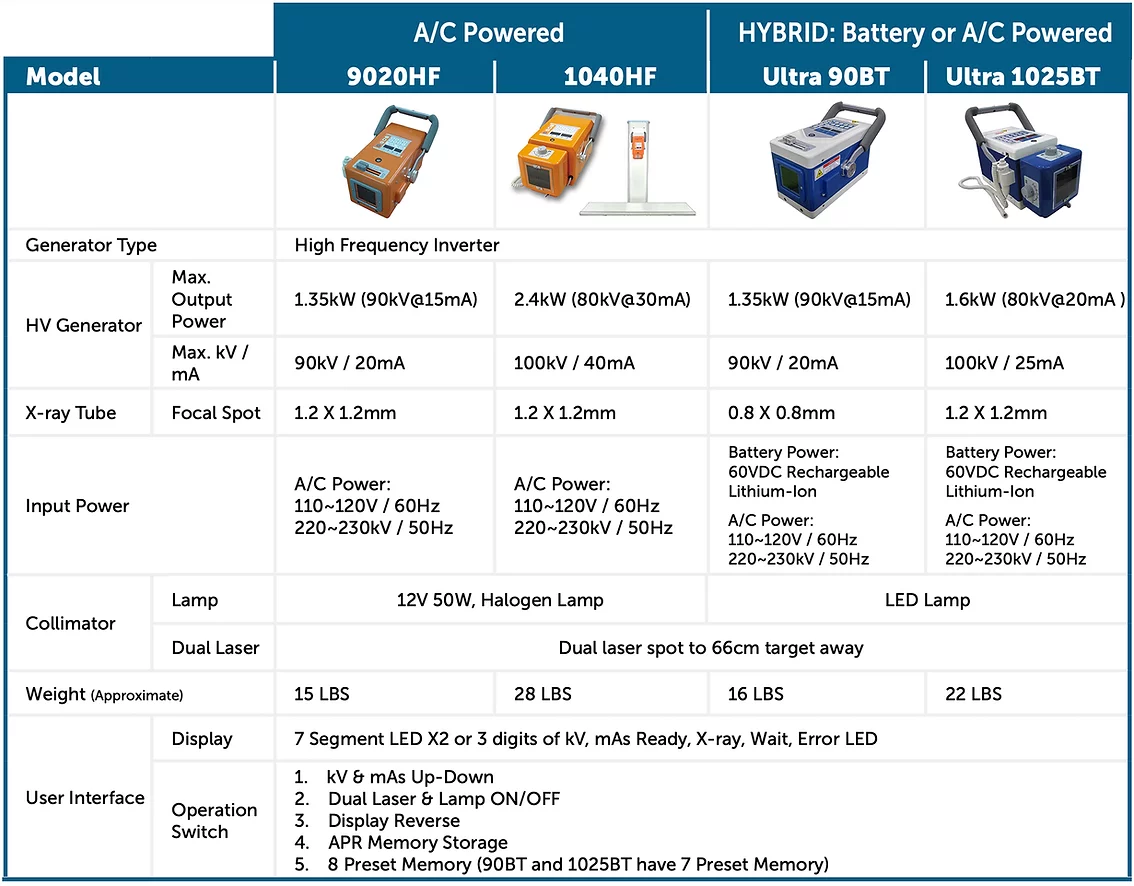

Portable Generator Systems

Shipping included in pricing!

EcoRay ​- $7,695 for any model
Plug-in and Hybrid (Battery and A/C)

BLUE Series: Hybrid Plug-In and Battery Powered Veterinary xray imaging generators, All in One System

ORANGE Series: 110v Veterinary Imaging Generators

  • Control unit
  • High voltage generator
  • X-ray tube
  • Collimator
  • Exposure switch
  • Power cord
  • Carrying case with user manual

Download or print our PDF with detailed specifications and sample images!

BLUE Series

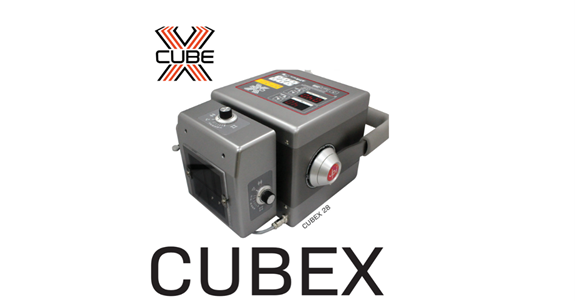

Cubex – $7,995

  • 40-120 kv
  • 40mA
  • 110v only
  • 26.5lbs

Soft-touch controls with digital displays.
Calibrated cassette size indicator dials.
Inverted control panel for table use available.
Two-stage dynamic, auto line compensation.
Easy integration with a digital system.
Dual integrated laser pointer.

Download or print our PDF with detailed specifications and sample images!

Contact us for a no-charge discussion on what best fits your needs.
